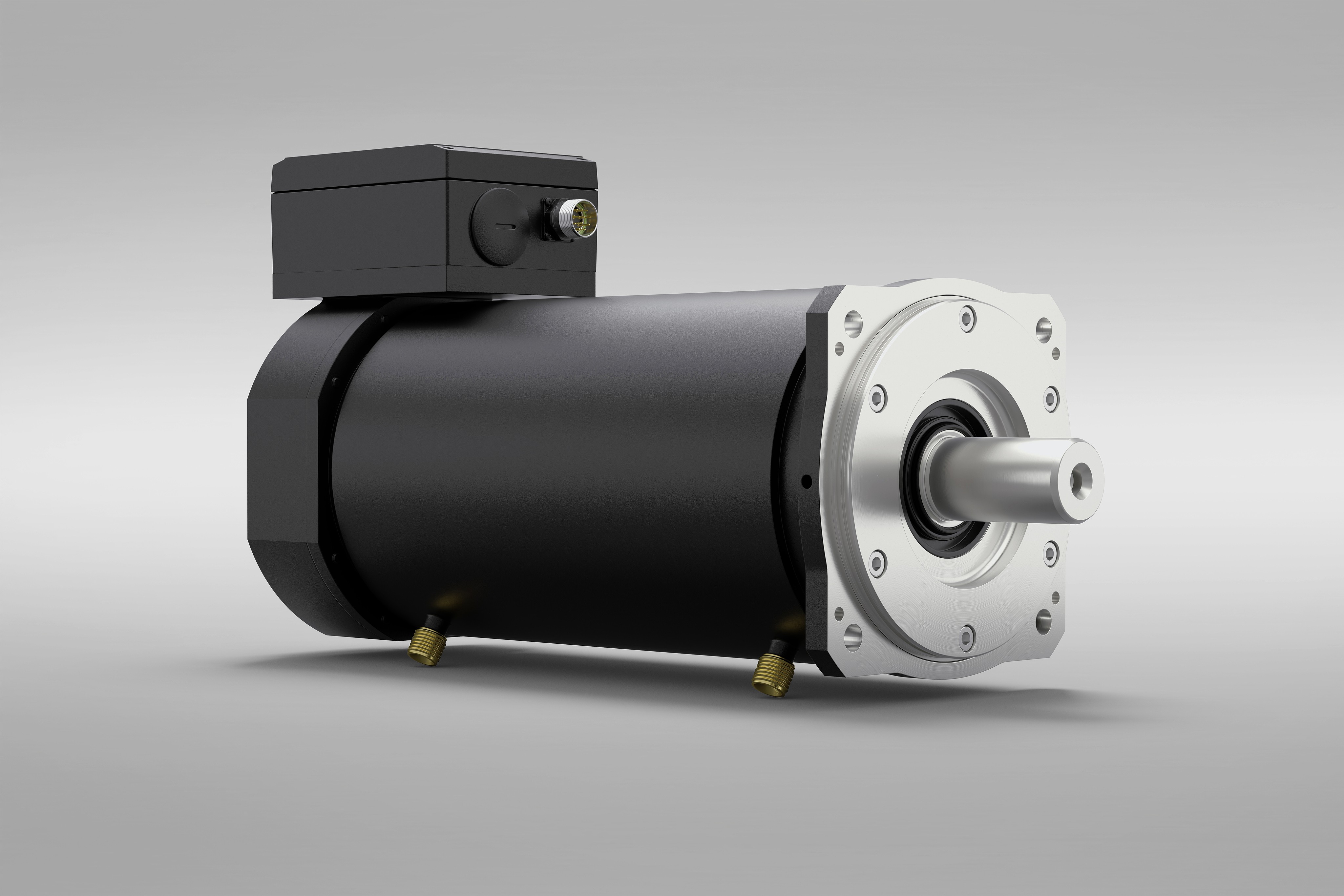

DIP Series
Synchronous servo motors – highly dynamic with high power density
High dynamics and maximum power density
The DIP synchronous servo motor sets a new standard in power and efficiency.
With up to three times the acceleration compared to equivalent AMKmotion servo motors, it impresses with high torque and extreme speeds – delivering maximum force in minimal space. The result: more compact machines, higher energy efficiency, and greater performance in the same footprint.
More power. Less space. Maximum efficiency – with the DIP.
Shorter cycle times and precise motion
The DIP synchronous servo motor delivers top-level repeatability and precise motion control.
It reduces cycle times, optimizes process sequences, and significantly boosts your machine’s productivity.
Precision, speed, and reliability – all combined in the DIP.
Energy-efficient and resource-saving
The DIP synchronous servo motor stands out for its exceptional energy efficiency: it requires significantly less power than comparable models to achieve the same acceleration.
Thanks to its reluctance design, it delivers maximum torque without additional magnetic material – reducing the use of rare earth elements.
Less energy. Fewer resources. Greater sustainability – with the DIP.
Maximum power density and dynamics
Maximum power density and dynamics
The DIP synchronous servo motor delivers up to three times the acceleration of comparable AMKmotion servo motors, providing maximum torque at extreme speeds – for peak performance, energy efficiency, and optimized installation space.
Higher torque density without additional magnets
Higher torque density without additional magnets
The DIP synchronous servo motor achieves maximum torque through an optimized reluctance component without extra magnetic material, reducing the use of rare earths and increasing the drive’s energy efficiency.
Compact design with maximum power density
Compact design with maximum power density
The DIP synchronous servo motor combines high torque and extreme speeds in a particularly compact design – enabling space-saving machine concepts with improved energy efficiency and enhanced system performance.
Precise, repeatable motion with shorter cycle times
Precise, repeatable motion with shorter cycle times
The DIP synchronous servo motor delivers exceptional repeatability and precise motion control, reducing cycle times and optimizing process sequences to boost overall machine productivity.
Application areas
Industry | Typical applications | Your benefits |
|---|---|---|
Printing & Packaging | Punching, cutting, conveyor & packaging systems | Shorter cycle times, repeatable motion, increased productivity |
Test benches & test systems | Dynamic load simulation, torque control | Fast load changes, precise control, flexible test sequences |
Plastics Industry | Injection molding, thermoforming and film stretching machines | Shorter cycle times, increased injection speeds, more delicate components |
Product features
Flange size | 190 x 190 mm |
Power range | 5 - 100 kW |
Rotational speeds | Up to 8.000 [min-1] |
Peak Performance | Up to 200 kW |
Maximum torque | Up to 550 Nm |
Inertia | From 26 - 160 kgcm^2 |
Acceleration capacity | Up to 37.000 rad/s². In real-world applications with a lambda ratio of 1:10, accelerations of up to 80g can be achieved. |
Cooling type | Convection-cooled, externally ventilated and liquid-cooled |
Protection class | IP54, IP65 |
Brake | Available with or without brake |
Encoder | Resolver, EnDat 2.1 / 2.2 light, Hiperface, Hiperface DSL |
Single-cable solution | Optionally available |
Certification | C-CSA-US |
