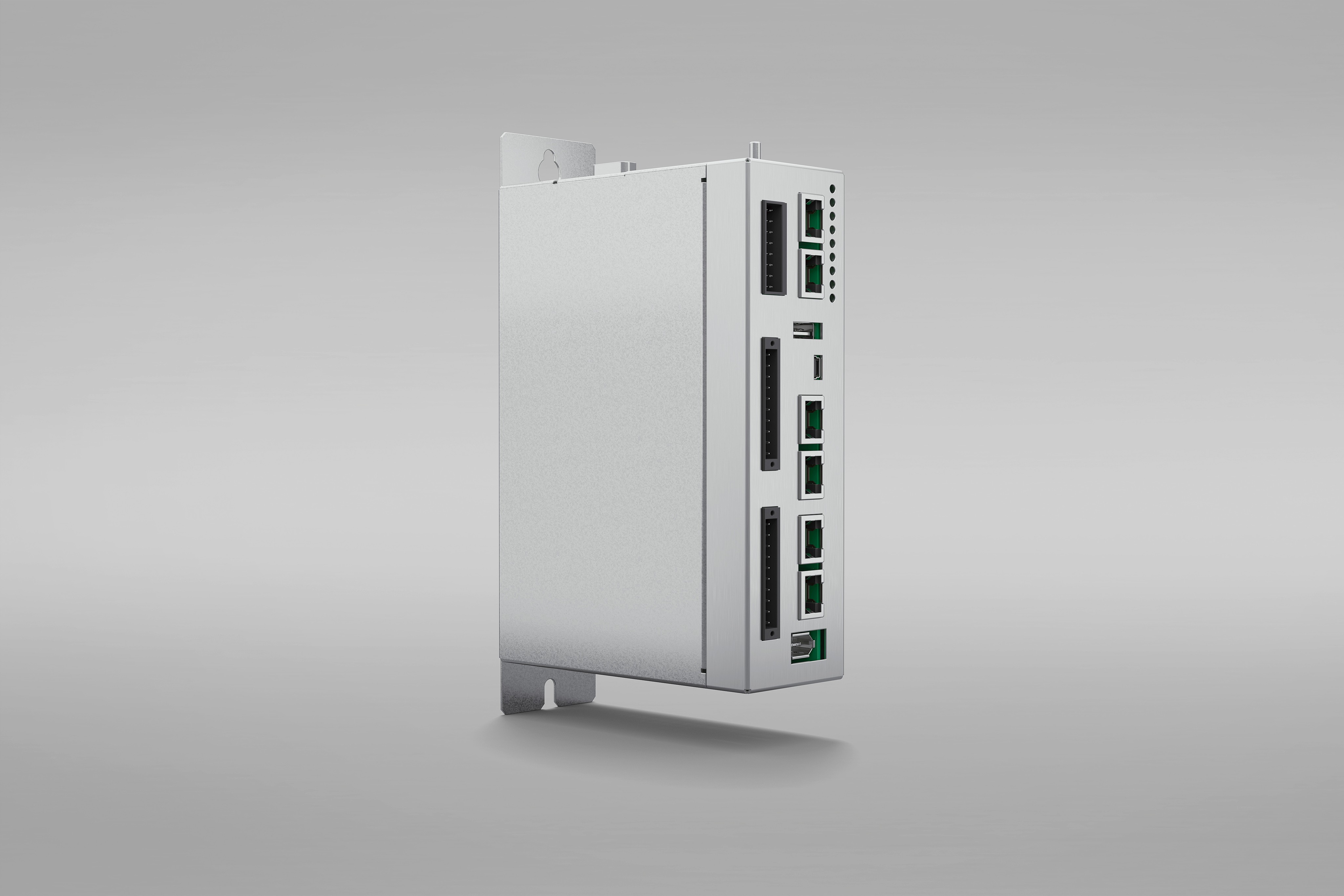

A4 Series

Motion control in the control cabinet

Open to multiple additions

Communication with the drives and other connected devices is via two real-time EtherCAT and CAN fieldbuses. Optional digital inputs and outputs, analogue inputs and pulse generators simplify integration of further modules.  The Motion Control A4S is tested and approved according to the ETG conformance test – ensuring straightforward integration in EtherCAT networks.

Simple connection

The Motion Control A4S has several ways in which it can communicate with the higher-level control unit: EtherCAT, Ethernet, PROFINET, PROFIBUS and CAN. This means that all common fieldbus systems are available.

Quickly ready for use

Quickly ready for use

Extensive libraries for the V2 and V3 runtime systems are available to the user. The AMKmotion modules are selected using the one-for-all tool AIPEX PRO – this speeds up and simplifies implementation of complex applications. The smart panel visualises CODESYS programming.



The Ethernet and USB communication interfaces provide flexible options for accessing the control system.

Product features

ARM11 with 532 MHz
RAM memory
512 MByte
Flash memory
256 MByte
Non-volatile memory
128 MByte
Fieldbus Master
Feldbus Slave
CAN, ProfiBus DP, EtherCAT Slave, ProfiNet Slave and Ethernet I/O
Host and client
IEC 61131-3, CODESYS, optional PLCopen
50.000 instructions per ms
A4-VIS for WebVisu or Qt
IP class
Ambient temperature
0 - 45°C
approx. 0.8 kg
