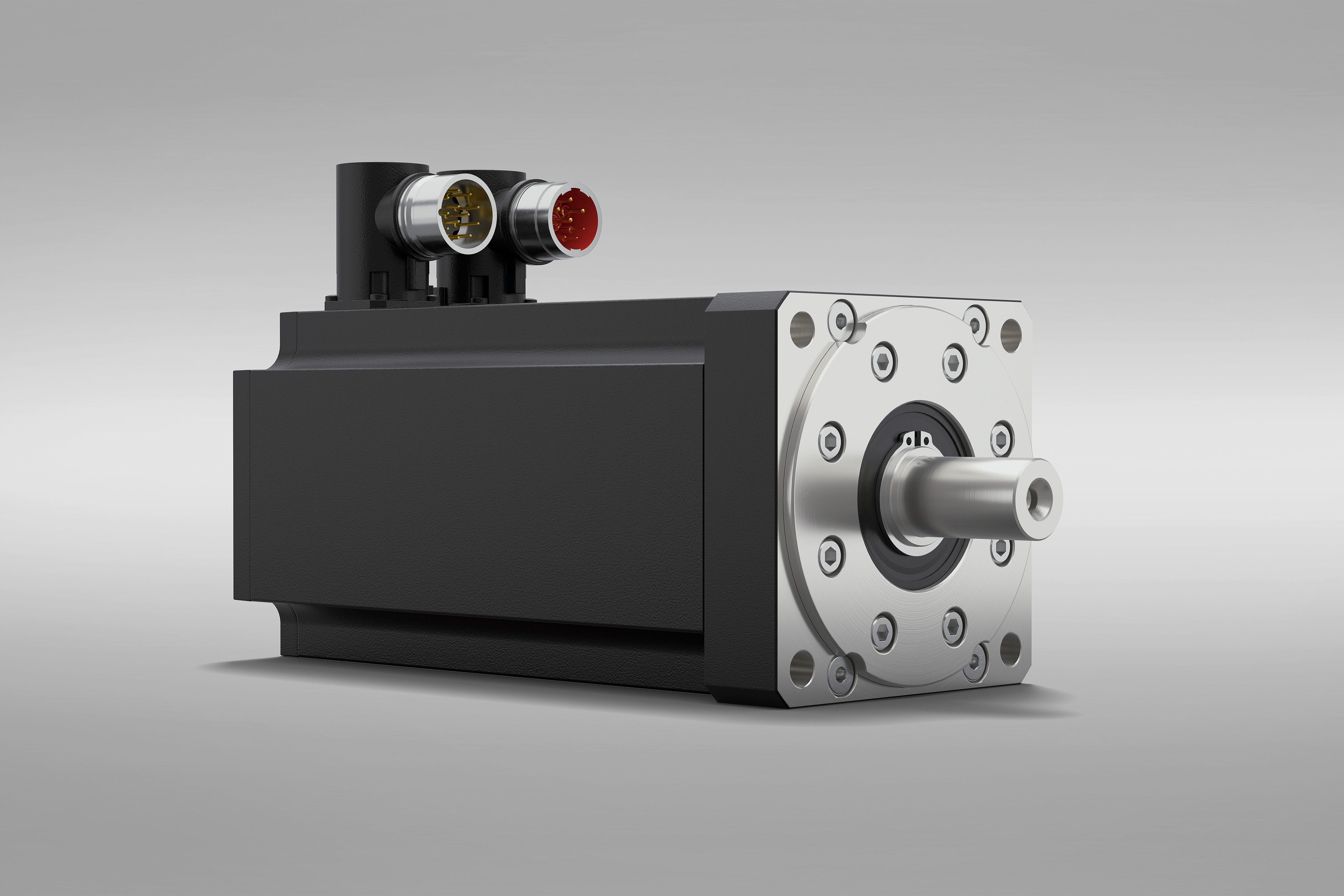

DTX series
Synchronous servo motor with integrated planetary gearbox
High performance and flexibility
The DTX stands out with its high torque density and delivers exceptional system performance through the optimal matching of the motor and the integrated planetary gearbox. Thanks to its robust design, it can also be used flexibly as a direct drive solution.
Compact design and easy integration
In the DTX, motor and gearbox are combined within a single housing. This significantly reduces the required installation space and enables highly compact machine designs.
At the same time, the reduced number of interfaces and connections lowers installation effort and minimizes potential sources of error. This simplifies assembly, shortens commissioning time, and ensures long-term operational reliability.
Energy efficiency and cost savings
With the precise matching of motor and gearbox, the DTX achieves high efficiency while reducing energy consumption. The lower system weight is particularly beneficial for moving axes and, together with the reduced number of components, contributes to a lower total cost of ownership (TCO).
Less complexity, more efficiency
Less complexity, more efficiency
The integrated design combines the motor and gearbox in a single housing – significantly reducing the number of interfaces and making system integration particularly easy.
Energy-efficient in operation
Energy-efficient in operation
The low system weight has a particularly positive effect on moving axes and contributes to energy-optimized operation.
High torque density
High torque density
The optimal coordination of the synchronous servomotor and integrated planetary gearbox ensures maximum performance and high torque in the smallest of spaces.
Application areas
Industry | Typical applications | Your benefits |
|---|---|---|
Plastics industry | Turnkey solutions | High precision and repeatability |
Metal and sheet metal processing | Auxiliary motion axes | Maximum energy efficiency |
Factory automation | Handling systems | Flexible and compact machine design |
Product features
Flange size | 100 x 100 mm |
Power range | 0.47 - 1.16 kW |
Rated speed | Up to 625 min-1 |
Rated torque | Up to 120 Nm |
Cooling type | Convection-cooled |
Protection class | IP54, IP65 |
Brake | Available with or without brake |
Encoder | EnDat 2.1, Hiperface, Hiperface DSL |
Single-cable solution | Optionally available |
Certification | C-CSA-US |
