Firmware update (Bootloader)

Reserved for AMK internal use!

Testen

Procedure:

NOTICE
Material Damage!	Wrong firmware selected and transferred to controller (Bootloader) The controller will be damaged, if you transferred the wrong firmware. Send the controller to AMK for repairs. Steps to prevent: BEFORE you update the firmware, please make really sure that you have selected the correct firmware. b03d-hxxx-bootloader-x.x.xx.img → A7D-10 (ARM Cortex-A9 Dual-Core) b03q-hxxx-bootloader-x.x.xx.img → A7D-15 & A7S-QC (ARM Cortex-A9 Quad-Core)

NOTICE

Material Damage!

Wrong firmware selected and transferred to controller (Bootloader)

The controller will be damaged, if you transferred the wrong firmware. Send the controller to AMK for repairs.

Steps to prevent:

BEFORE you update the firmware, please make really sure that you have selected the correct firmware.
- b03d-hxxx-bootloader-x.x.xx.img → A7D-10 (ARM Cortex-A9 Dual-Core)
- b03q-hxxx-bootloader-x.x.xx.img → A7D-15 & A7S-QC (ARM Cortex-A9 Quad-Core)

Follow procedure 'Firmware update (A7_MainOS_xxx_xxxx_xxxxxx.zip)' until step 9: Siehe 'Procedure - switch cabinet controller'.

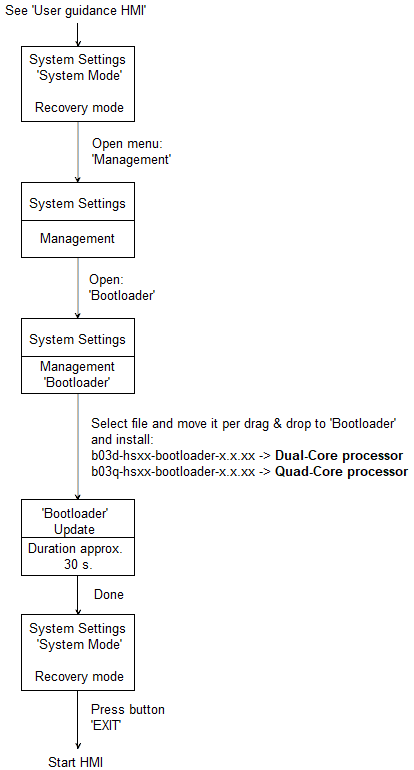

Update as shown in the following signal diagram
Further procedure 'Firmware update (A7_MainOS_xxx_xxxx_xxxxxx.zip)' follow from step 10: Siehe 'Procedure - switch cabinet controller'.
