Installation manual

Requirement

Recommended PC requirement

• Processor: Pentium V, Centrino > 3,0 GHz, Pentium M > 1,5 GHz

• Available hard disc space 1 GB or higher

• RAM 1024 MB or higher

Supported operation systems

• Windows 10
• Windows 8 and 8.1
• Windows 7
• Windows XP with SP3 (SP1 must be installed before SP3 become installed)

Necessary .NET versions

SafePMT needs Microsoft .NET Framework 3.5

CODESYS V3 needs Microsoft .NET Framework 4.0



Administrator rights are required for the installation.

Important hints

An old version of 'SafePMT ' must first be manually removed.

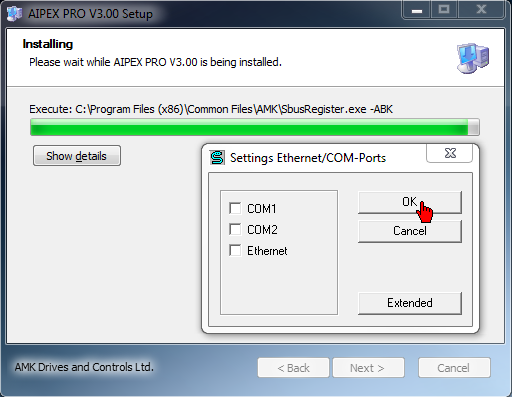

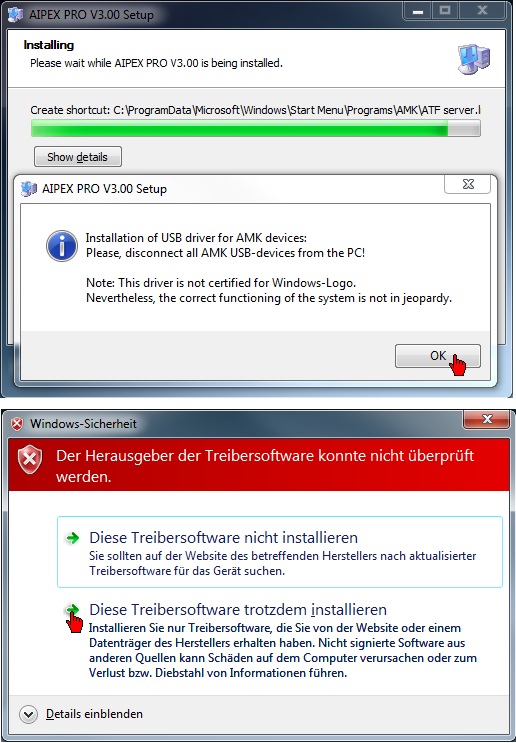

If you deinstall AIPEX PRO from your PC, all installed drivers (WinPcap, USBCOM driver and IXXAT driver) will be removed.

Installation

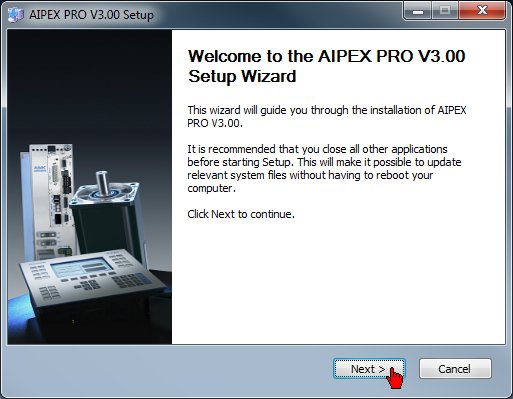

The 'AMK AIPEX PRO Installer' starts automatically after insertion the CD.

Call manually the file 'SetupAipexPro.exe' if the automatically CD start is deactivated.

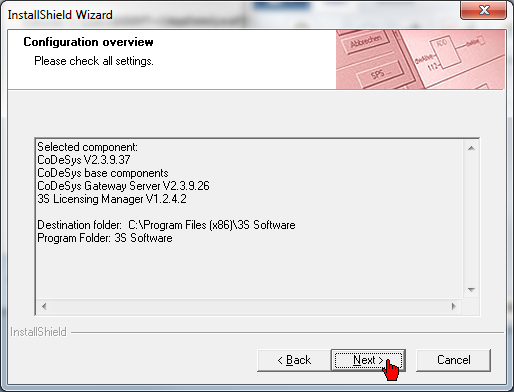

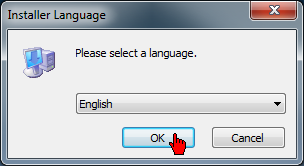

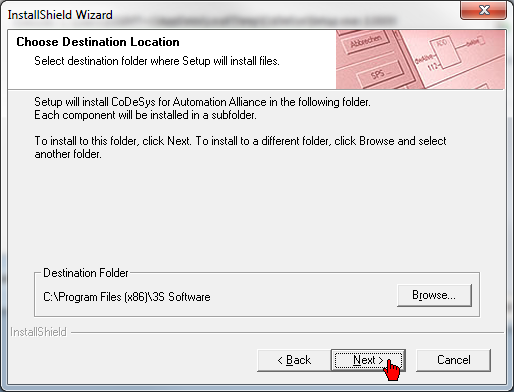

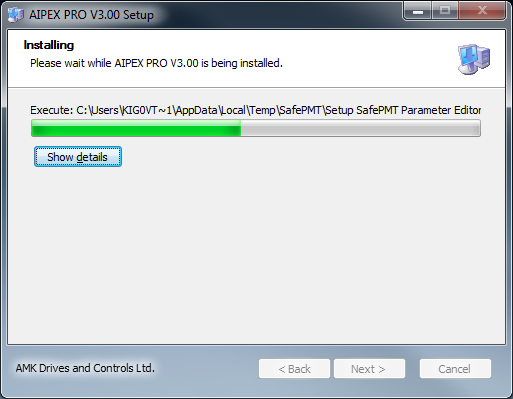

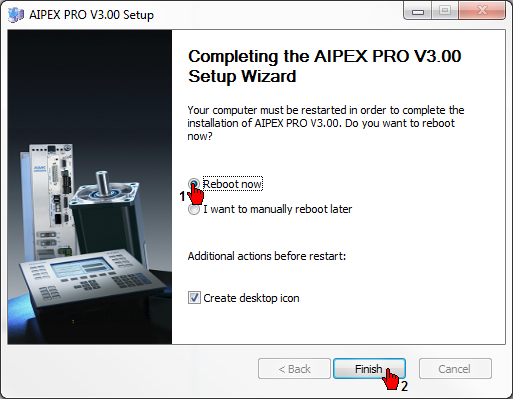

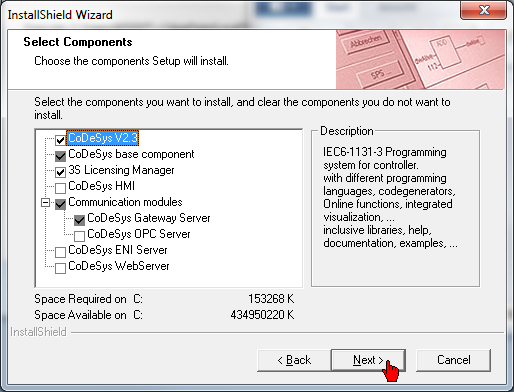

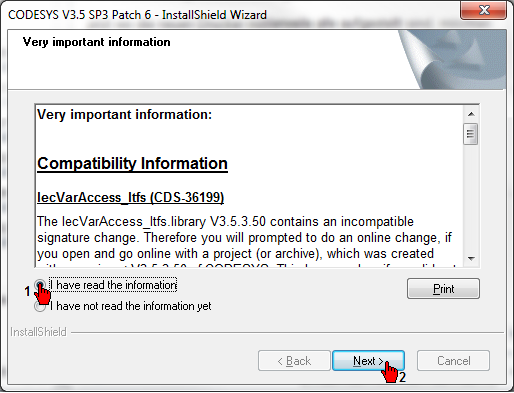

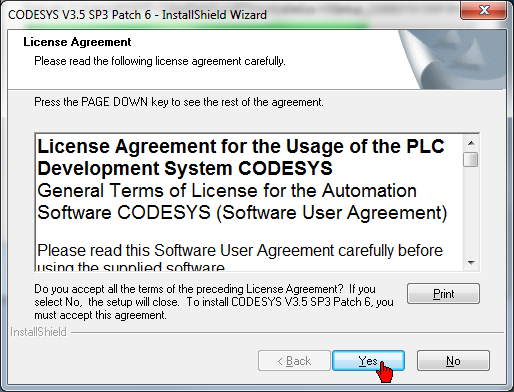

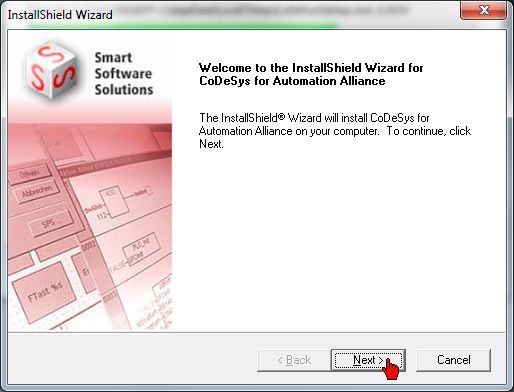

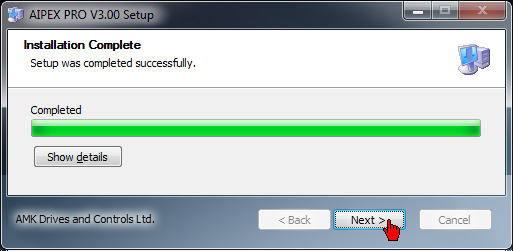

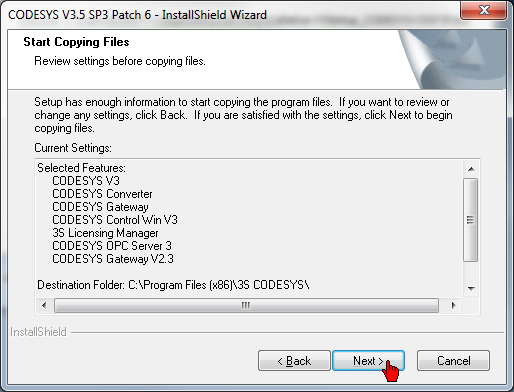

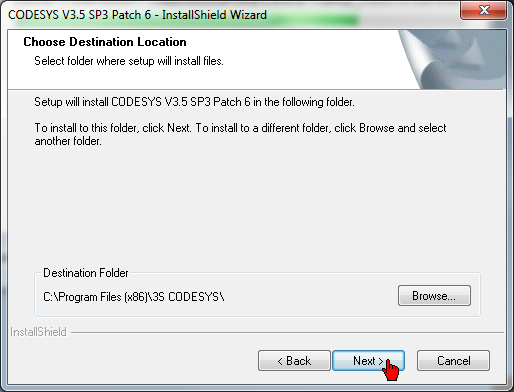

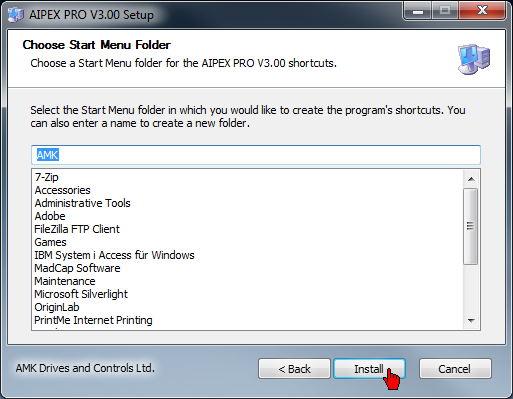

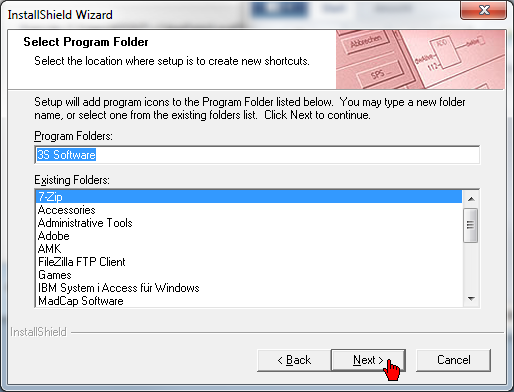

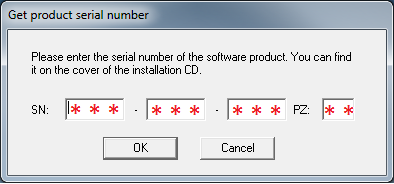

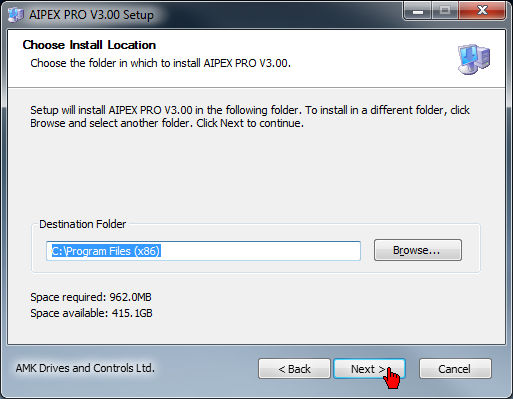

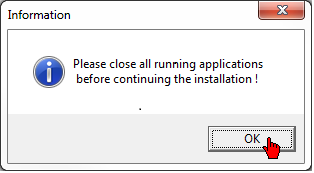

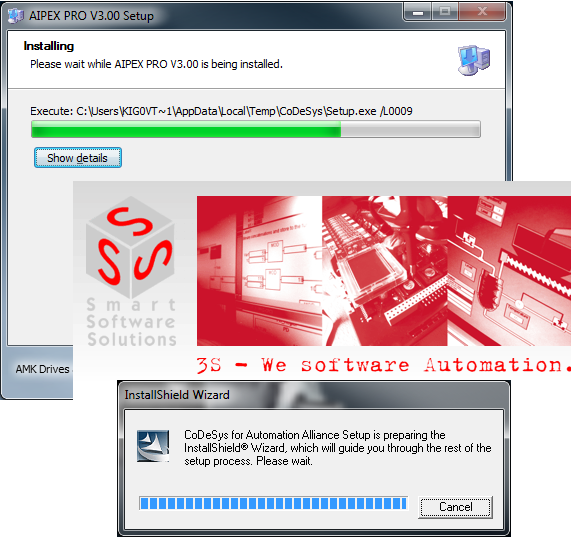

Follow the 'AIPEX PRO Installer instructions'

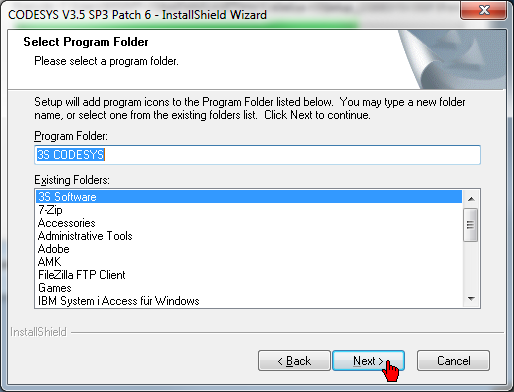

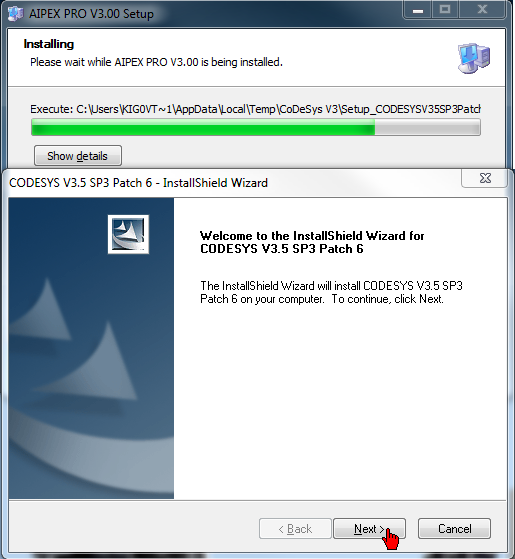

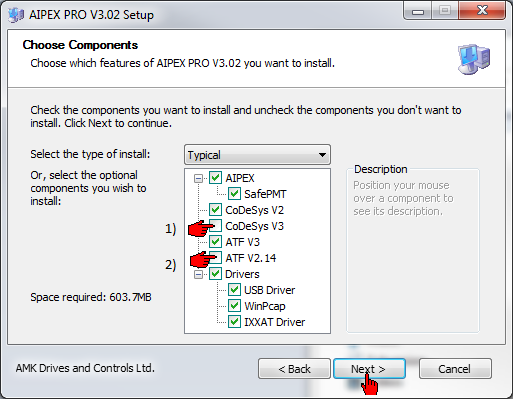

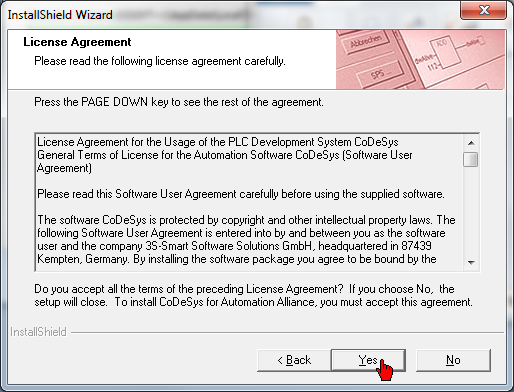

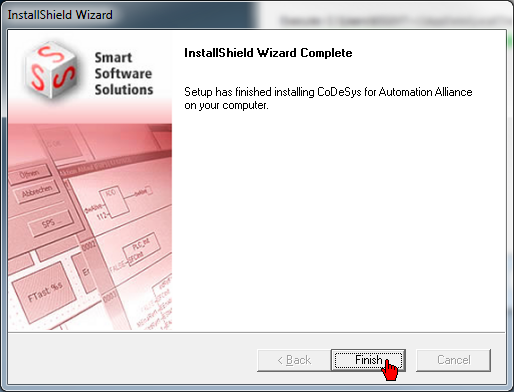

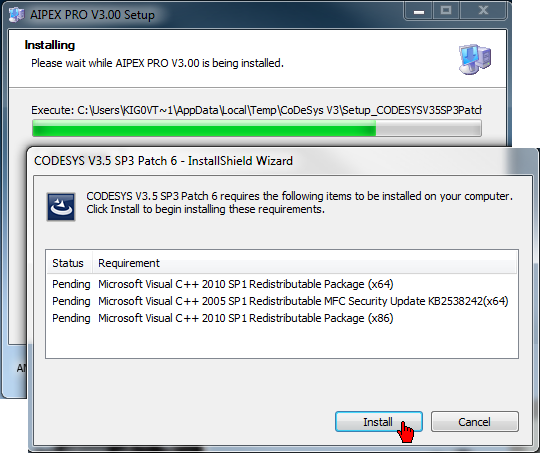

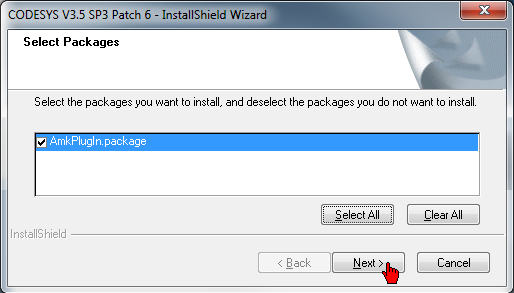

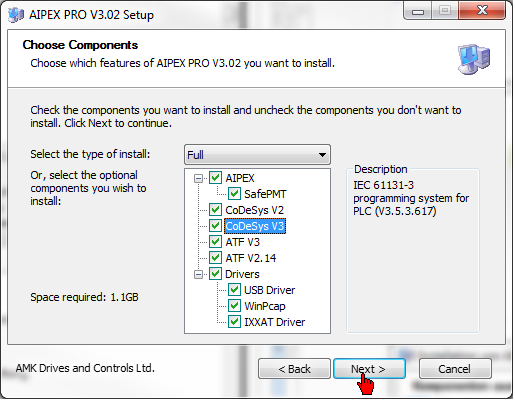

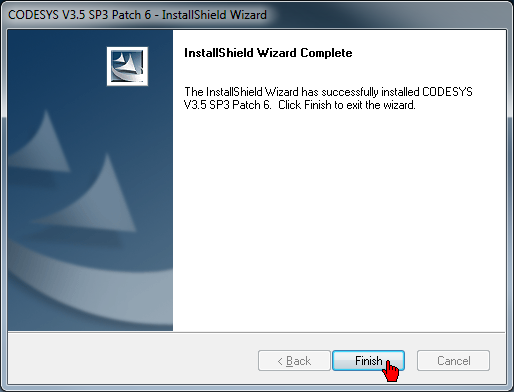

1) From version AIPEX PRO V3.02 CODESYS V3 is not installed automatically. Please select CODESYS V3 if you want to use.   2) Software ATF version 2.14 IDT4 and KWZ requires the ATF version V2.14. The version 2.14 is part of the installation package of AIPEX PRO but must be selected explicit during installation process. The ATF version 2.14 and 3.x can be installed both. If ATF 2.14 is started, no software ATF up from V3.0 and other parts of AIPEX PRO 3.x can be started at the same time. All components of AFT V2.14 are installed inside the local folder of this programm (C:\Program Files (x86)\ATF V2.14) and not into the windows folder (C:\Windows\System32)
