Visualization

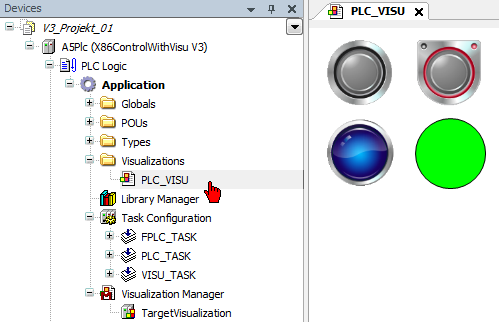

PLC_VISU is always the first visualization page called.
The basic settings are set on the 'TargetVisualization' page.

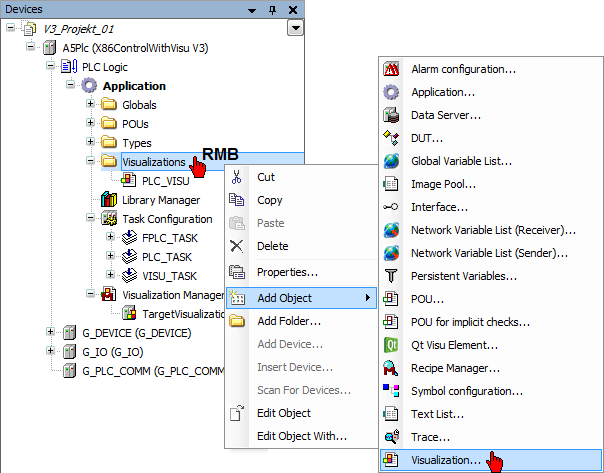

Create an empty page

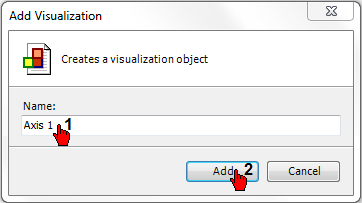

Assign a name
Visualization Standard blocks
The Standard block visualizations will be integrated (with CODESYS V3) inside the actual project by using the 'Import' function. CODESYS menu 'Project' → 'Import'.
C:\Programs (x86)\3S CODESYS\AmkAddition\Imports\Application\V3_import.
(The AFL Application block visualizations contained in an additional library. Siehe 'Visualization of AFL blocks'. )
The visualizations are integrated with Vis-tool 'Frame'.
Chose the desired visualization with the button 'add'.
The inserted frame in the visualization must be linked to the instanced AFL Standard block and the associated structure ST_AXIS_DRIVE.
|
|
With m_Input_stDevice_Str specified a name (STRING) which will be displayed in the visualization. |
Selection visualization language.
|
|
Language-dependent texts are displayed only in the online mode.
The displayed texts (German and English) are stored in a text list: folder 'POUs' → 'Standard' → 'Visualizations' → 'Standard' → 'TextListStandard' |
Display in 'RUN mode'
