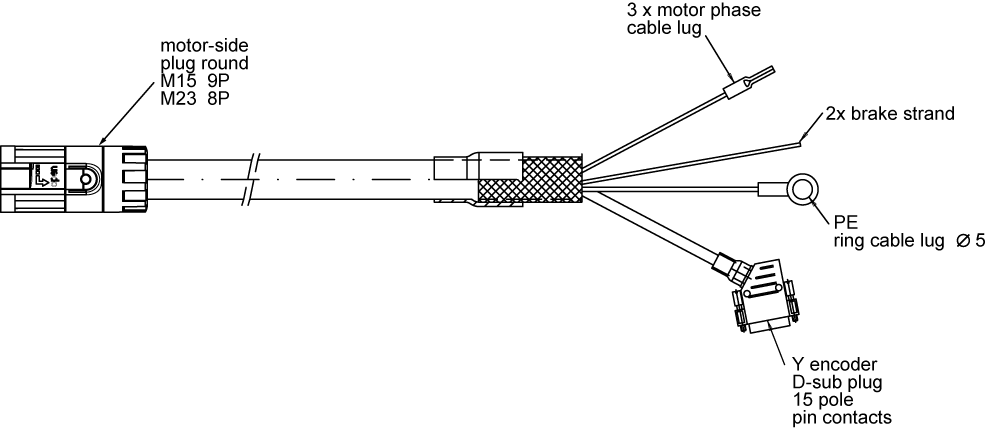

Hybrid cable for Hiperface DSL encoder (Y-encoder)
|
Hybrid cable |
Hybrid cable |
Lead |
Function |
Pin D-SUB |
|---|---|---|---|---|
|
AMK part-no. 403549 |
AMK part-no. 403550 |
|||
|
Pin M23 |
Pin M15 |
|||
|
|
|
green/yellow |
PE |
|
|
1 |
A |
1 |
U |
|
|
4 |
B |
2 |
V |
|
|
3 |
C |
3 |
W |
|
|
D |
1 |
5 |
+BR |
|
|
A |
2 |
6 |
-BR |
|
|
C |
3 |
blue |
+DSL |
15 |
|
B |
4 |
white |
-DSL |
14 |
The signal of the temperature sensors inside the motor winding is transmitted via the DSL cable to the converter. The connector for the motor temperature sensor (motor winding) on the converter keeps not connected.
